Stairville - MH-X25

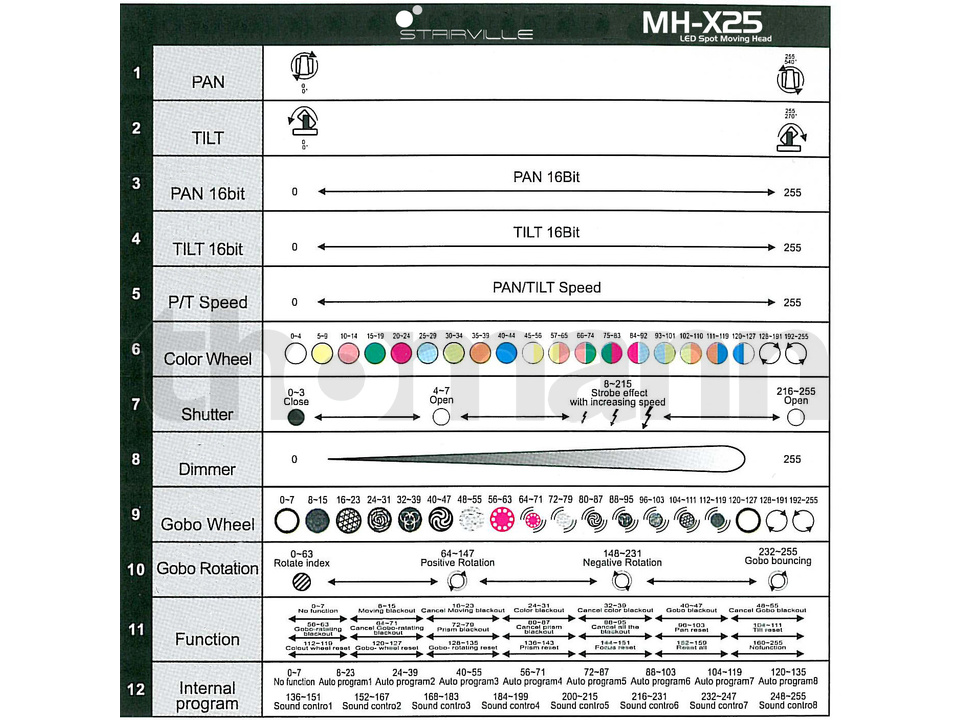

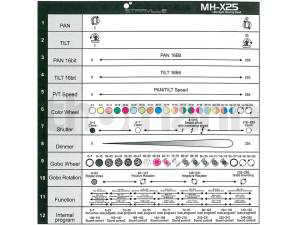

Stairville MH-X25 LED Spot Moving Head - extremely bright, light and economic. Thanks to an extremely bright 25W thomann high-power LED the MH-X25 LED is well in the running with the 150-HTI side of life. The MH-X25 is fitted out with a colour wheel (8x colours and white ), a gobo wheel with 7x rotating gobos plus open shutter and dimmer (0-100%), this thomann allows the MH-X25 to operate in any situation required. Technical data: 8/16bit pan/tilt, (540º maximum pan, 270º maximum tilt), automatic pan/tilt correction, DMX 512 control (12 or 6 channels), master/slave mode (via the built-in microphone), colour wheel with 8x colours + open white thomann (8x full colours, 8x split-colours, rainbow effect), gobo wheel with 7x rotating gobos + open shutter (user gobos can be inserted, gobo shake function, gobo direction forwards and backwards), shutter (0-13Hz), electronic dimmer (0-100%), maximum power consumption: 102W, power requirements: 230V AC (60/50Hz). thomann Weight: 10.3kg

Further Information
Documentation
